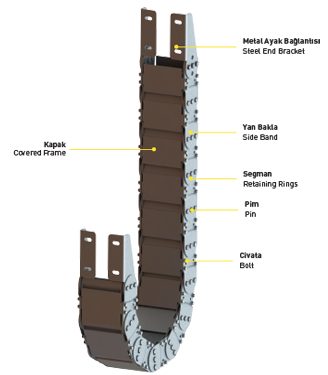

CSK Steel Cable Drag Chain
Material Properties
ST52 Quality Steel / Stainless Steel
ZINC COATED STEEL
- Zinc coated chain bands
- Zinc coated divider
- Connection fittings are zinc coated
- Aluminium rods
- Covered by steel band
STAINLESS STEEL SERIES
- Stainless steel chain bands
- Stainless steel divider
- Stainless steel connection fittings
- Aluminium rods
- Covered by Stainless steel band
Application Areas
Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Wood work machine, Fabric machine
| L | Calculation of the chain length |
|---|---|
| HM | Movement Distance |
| Y | Radius Distance |
| X | Mounting Height |
| H | Pitch |
| A | B MIN |
B MAX |
C | D MIN |
D MAX |
W | |
|---|---|---|---|---|---|---|---|
| MODEL | Inner Height (mm) | Inner Width (mm) | Outer Height (mm) | Outer Width (mm) | Weight Kg/Mt | ||
| CS45 K ... | 45 | 80 | 500 | 63 | 102 | 522 | - |
| CS60 K ... | 60 | 80 | 500 | 78 | 102 | 522 | - |
| CS75 K ... | 75 | 100 | 800 | 97 | 130 | 830 | - |
| CS110 K ... | 110 | 200 | 1000 | 140 | 232 | 1032 | - |
| CS180 K ... | 180 | 300 | 1500 | 220 | 345 | 1545 | - |
| R CS45 K Bending Radius | 150 | 200 | 250 | 300 | 350 | 400 |
|---|---|---|---|---|---|---|
| H (mm) | 85 | 85 | 85 | 85 | 85 | 85 |
| X (mm) | 363 | 463 | 563 | 663 | 763 | 863 |
| Y (mm) | 471 | 628 | 785 | 942 | 1099 | 1256 |
| R CS60 K Bending Radius | 200 | 250 | 300 | 350 | 400 | 600 |
|---|---|---|---|---|---|---|
| H (mm) | 100 | 100 | 100 | 100 | 100 | 100 |
| X (mm) | 478 | 578 | 678 | 778 | 878 | 1278 |
| Y (mm) | 628 | 785 | 942 | 1099 | 1256 | 1884 |
| R CS75 K Bending Radius | 250 | 300 | 350 | 400 | 500 | 600 |
|---|---|---|---|---|---|---|
| H (mm) | 125 | 125 | 125 | 125 | 125 | 125 |
| X (mm) | 597 | 697 | 797 | 897 | 1097 | 1297 |
| Y (mm) | 785 | 942 | 1099 | 1256 | 1570 | 1884 |
| R CS110 K Bending Radius | 300 | 350 | 400 | 500 | 600 | 800 | 1000 |
|---|---|---|---|---|---|---|---|
| H (mm) | 175 | 175 | 175 | 175 | 175 | 175 | 175 |
| X (mm) | 740 | 840 | 940 | 1140 | 1340 | 1740 | 2140 |
| Y (mm) | 942 | 1099 | 1256 | 1570 | 1884 | 2512 | 3140 |
| R CS180 K Bending Radius | 400 | 500 | 600 | 700 | 800 | 900 | 1100 | 1400 |
|---|---|---|---|---|---|---|---|---|
| H (mm) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| X (mm) | 1020 | 1220 | 1420 | 1620 | 1820 | 2020 | 2420 | 3020 |
| Y (mm) | 1256 | 1570 | 1884 | 2198 | 2512 | 2826 | 3454 | 4396 |
Order
Load Diagram

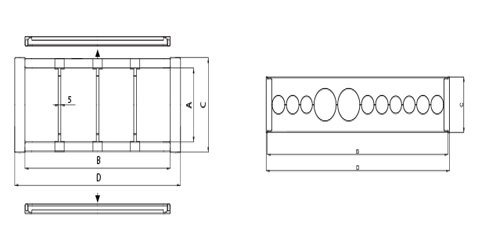

Chain Cross Section
Driver Connections

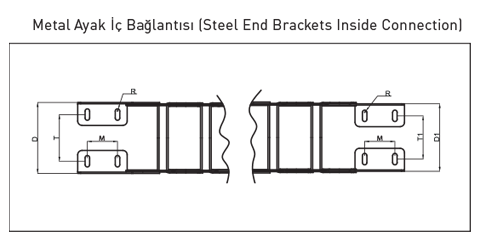

Steel End Brackets Inside Connection

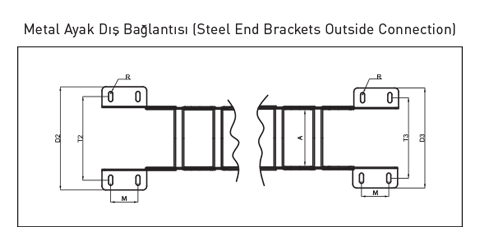

Steel End Brackets Outside Connection
| CODE | T | T1 | D | D1 | T2 | T3 | D2 | D3 | M | R |
|---|---|---|---|---|---|---|---|---|---|---|
| CS45 M ... | B-26 | B-36 | B+16 | B+6 | B+58 | B+49 | B+93 | B+88 | 65 | 8,6 |
| CS60 M ... | B-46 | B-56 | B+16 | B+6 | B+68 | B+64 | B+115 | B+110 | 70 | 10,8 |
| CS75 M ... | B-41 | B-53 | B+20 | B+10 | B+79 | B+71 | B+129 | B+120 | 80 | 13 |
| CS110 M ... | B-45 | B-57 | B+24 | B+16 | B+84 | B+76 | B+144 | B+136 | 115 | 13 |
| CS180 M ... | B-58 | B-72 | B+36 | B+24 | B+122 | B+108 | B+216 | B+202 | 170 | 16,5 |

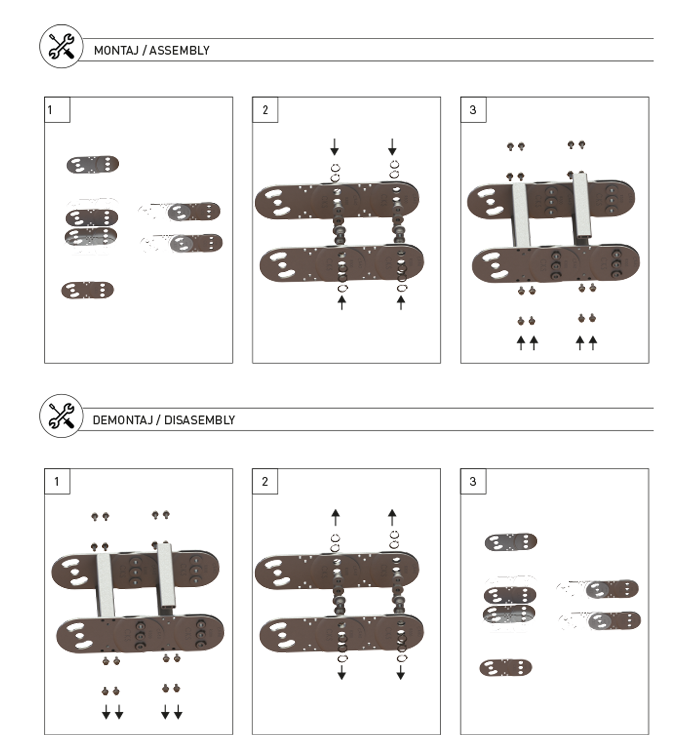

Assembly
