Reduced Cable Glands
Plastic series are separeted from other cable glands due to the following characteristics:-
- Polyamide raw material
- High heat and impact resistance
- Anti lock system provides superior antivibration protection
- TPV rubber seal
- Resistance to Ultraviolet rays
- Ensures a firm grip on the cable that each point equal to 360°
- Connection thread norm (EN 60423)
- Slippery surface for easy cable access
- Continuous heat resistance -30 °C +80 °C
- Short term temperature range +150 °C
- Halogen free (not contain poisonous gas)
- According to EN 50262

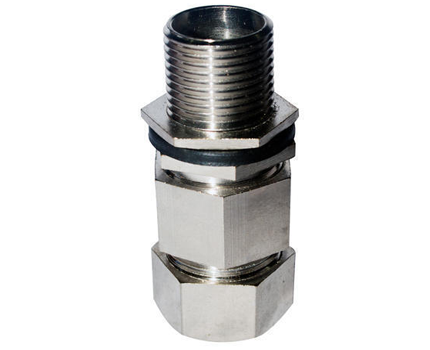

Extra Long Type Brass Cable Glands
Metal series are separeted from other cable glands due to the following characteristics:-
- Brass, nickel plated
- High heat and impact resistance
- TPV rubber seal
- Ensures a firm grip on the cable that each point equal to 360°
- Connection thread norm (EN 60423 / DIN 40430)
- IP68 protection class
- Permanent heat resistance -40 °C +100 °C
- Halogen free (not contain poisonous gas)
- Nitrile butaidene rubber (NBR 0-ring)

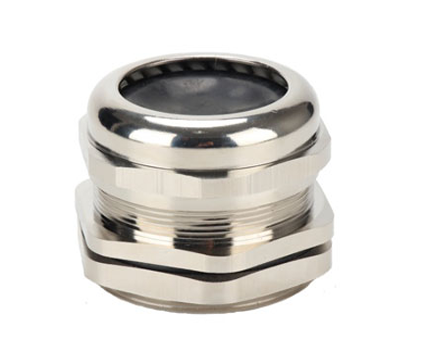

Special Size Brass Cable Glands
Special size metal series are separeted from other cable glands due to the following characteristics:-
- Brass, nickel plated
- High heat and impact resistance
- EPDM (Ethylene Propylene Diene Monomer) rubber seal
- Ensures a firm grip on the cable that each point equal to 360°
- Connection thread norm (EN 60423)
- IP68 protection class
- Permanent heat resistance -40 °C +140 °C
- Halogen free (not contain poisonous gas)
- Nitrile butaidene rubber (NBR O-ring)
