CSA Steel Cable Drag Chain

Material Properties

  ST52 Quality Steel / Stainless Steel

ZINC COATED STEEL

  • Zinc coated chain bands
  • Zinc coated divider
  • Connection fittings are zinc coated
  • Aluminium rods
  • Plastic divider

STAINLESS STEEL SERIES

  • Stainless steel chain bands
  • Stainless steel divider
  • Stainless steel connection fittings
  • Aluminium rods
  • Plastic divider

Application Areas

  Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Wood work machine, Fabric machine

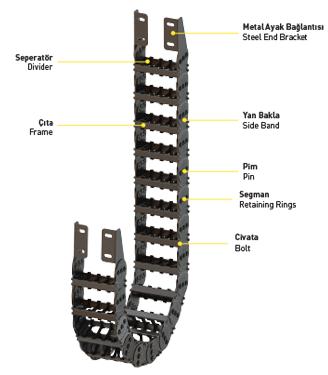

About Image

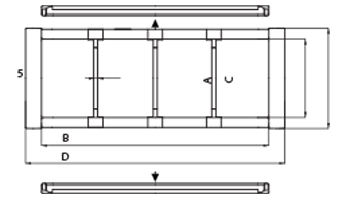

L Calculation of the chain length
HM Movement Distance
Y Radius Distance
X Mounting Height
H Pitch
A B
MIN		 B
MAX		 C D
MIN		 D
MAX		 W
MODEL Inner Height (mm) Inner Width (mm) Outer Height (mm) Outer Width (mm) Weight Kg/Mt
CS30 A ... 30 80 500 50 96 516 -
CS45 A ... 45 80 500 63 102 522 -
CS60 A ... 60 80 500 78 102 522 -
CS75 A ... 75 100 800 97 130 830 -
CS110 A ... 110 200 1000 140 232 1032 -
CS180 A ... 180 300 1500 220 345 1545 -
R CS30 A Bending Radius 75 150
H (mm) 85 85
X (mm) 213 363
Y (mm) 235 471
R CS45 A Bending Radius 75 100 150 200 250
H (mm) 85 85 85 85 85
X (mm) 213 263 363 463 563
Y (mm) 235 314 471 628 785
R CS60 A Bending Radius 100 150 200 250 300
H (mm) 100 100 100 100 100
X (mm) 278 378 478 578 678
Y (mm) 314 471 628 785 942
R CS75 A Bending Radius 150 200 250 300
H (mm) 125 125 125 125
X (mm) 397 497 597 697
Y (mm) 471 628 785 942
R CS110 A Bending Radius 250 300 350 400 500 600 800 1000
H (mm) 175 175 175 175 175 175 175 175
X (mm) 640 740 840 940 1140 1340 1740 2140
Y (mm) 785 942 1099 1256 1570 1884 2512 3140
R CS180 A Bending Radius 400 500 600 700 800 900 1100 1400
H (mm) 250 250 250 250 250 250 250 250
X (mm) 1020 1220 1420 1620 1820 2020 2420 3020
Y (mm) 1256 1570 1884 2198 2512 2826 3454 4396

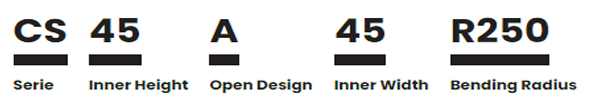

Order

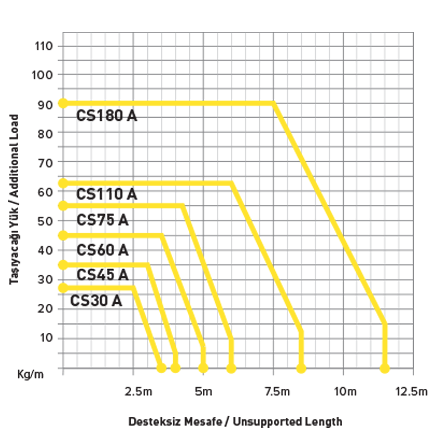

Load Diagram

Chain Cross Section

Driver Connections

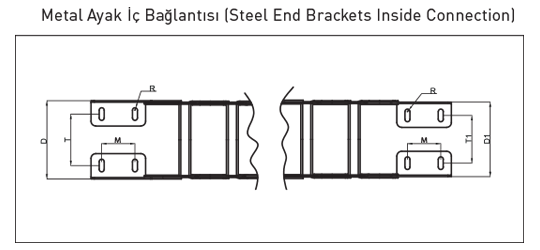

Steel End Brackets Inside Connection

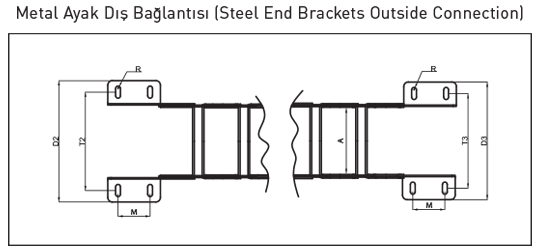

Steel End Brackets Outside Connection

CODE T T1 D D1 T2 T3 D2 D3 M R
CS45 M ... B-26 B-36 B+16 B+6 B+58 B+49 B+93 B+88 65 8,6
CS60 M ... B-46 B-56 B+16 B+6 B+68 B+64 B+115 B+110 70 10,8
CS75 M ... B-41 B-53 B+20 B+10 B+79 B+71 B+129 B+120 80 13
CS110 M ... B-45 B-57 B+24 B+16 B+84 B+76 B+144 B+136 115 13
CS180 M ... B-58 B-72 B+36 B+24 B+122 B+108 B+216 B+202 170 16,5

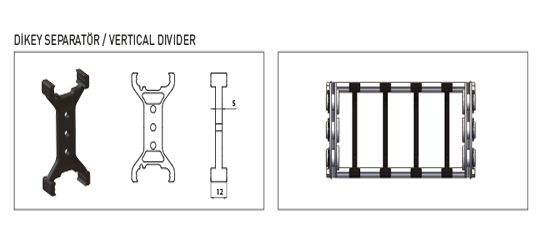

Seperator

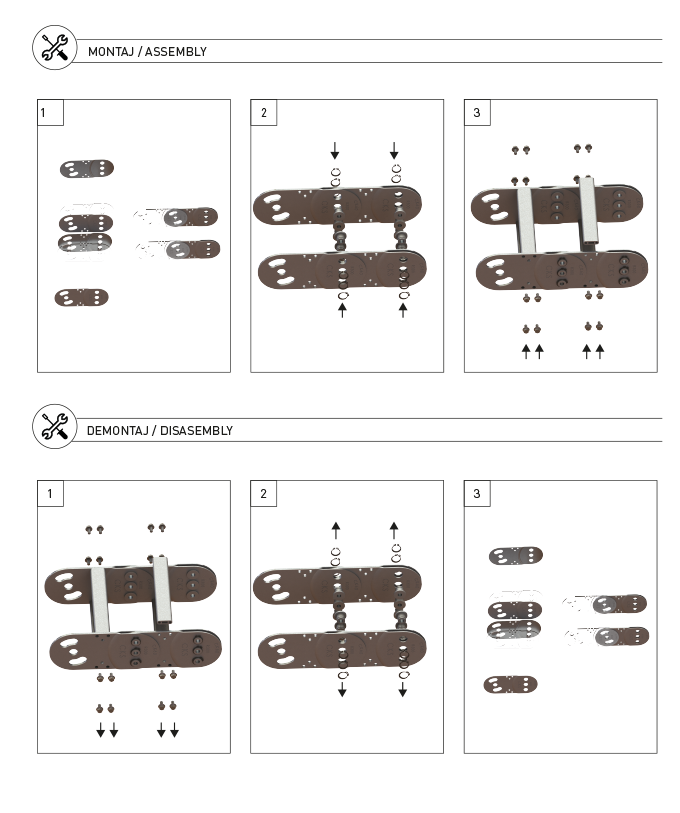

Assembly
