HEAVY SERIESALUMINIUM FRAME CK40-60-80 AC?K

  • Home
  • HEAVY SERIESALUMINIUM FRAME CK40-60-80 AC?K

KNOW MORE ABOUT THIS PRODUCT

CK 40 A Plastic Cable Drag Chain

Material Properties

  PA6 with %30 fiber glass

Application Areas

  Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Wood work machine, Fabric machine

Speed

  6m/sec

Operating Temperature

  -30 °C -+ 130°C

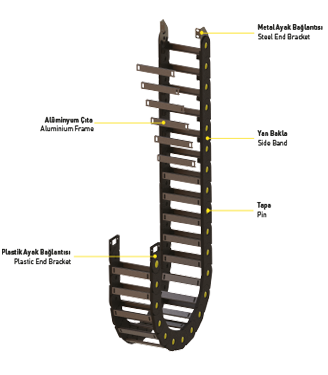

About Image
L Calculation of the chain length
HM Movement Distance
Y Radius Distance
X Mounting Height
H Pitch
A B
MIN		 B
MAX		 C D
MIN		 D
MAX		 W
MODEL Inner Height (mm) Inner Width (mm) Outer Height (mm) Outer Width (mm) Weight Kg/Mt
CK40 AL ... 40 80 400 62 108 428 -
CK60 AL ... 60 80 400 82 112 432 -
CK80 AL ... 80 80 500 102 112 532 -
R Bending Radius 75 100 125 150 200 250 300
H (mm) 72 72 72 72 72 72 72
X (mm) 212 262 312 362 462 562 662
Y (mm) 236 314 392 471 628 785 942
R Bending Radius 100 150 200 250 300
H (mm) 91 91 91 91 91
X (mm) 282 382 482 582 682
Y (mm) 314 471 628 785 942
R Bending Radius 150 200 250 300
H (mm) 110 110 110 110
X (mm) 402 502 602 702
Y (mm) 471 628 785 942

Order

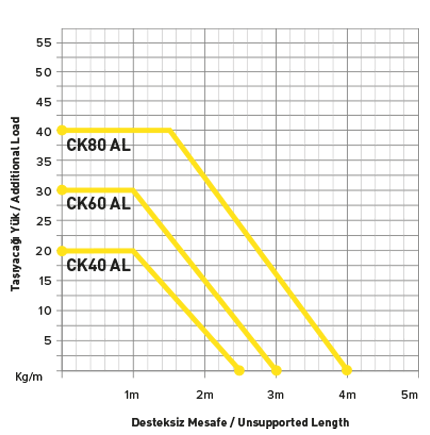

Load Diagram

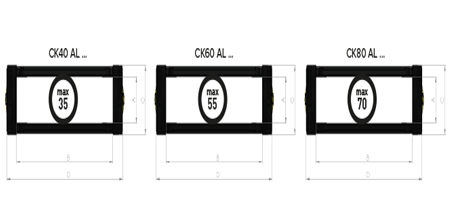

Chain Cross Section

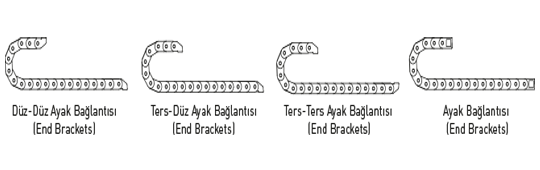

Driver Connections

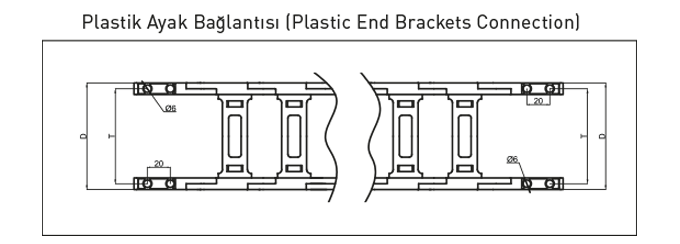

Plastic End Brackets Connection

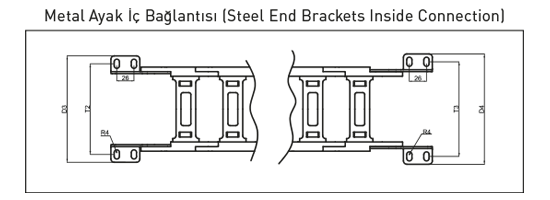

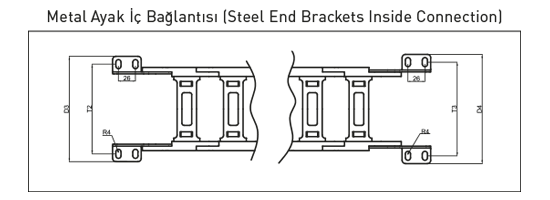

Steel End Brackets Inside Connection

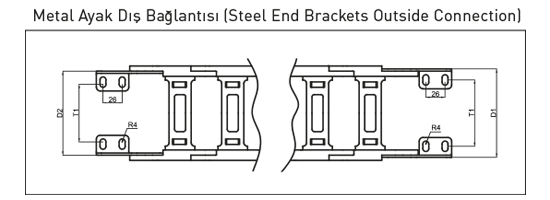

Steel End Brackets Outside Connection

CODE T T1 T2 T3 D D1 D2 D3 D4
CK40 P ... B+14 B-15 B+45 B+60 B+28 B+24 B+14 B+70 B+85
CK60 P ... B+16 B-15 B+43 B+65 B+30 B+28 B+18 B+67 B+90
CK80 P ... - B-20 B+60 B+83 - B+28 B+18 B+86 B+108

Seperator

T TYPE LENGHT
CK YSP 060 60 mm
CK YSP 080 80 mm
CK YSP 100 100 mm

Use the Divider

You can separate the cable and hose from each other by using vertical and horizontal divider.

Assembly / Disassembly
