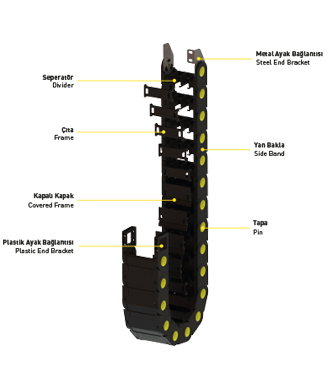

Plastic Heavy Series CK40 AC?K
Material Properties
PA6 with %30 fiber glass
Application Areas
Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Wood work machine, Fabric machine
Speed
6 m/sec
Operating Temperature
-30 °C -+ 130°C
| L | Calculation of the chain length |
|---|---|
| HM | Movement Distance |
| Y | Radius Distance |
| X | Mounting Height |
| H | Pitch |
| A | B | C | D | W | |
|---|---|---|---|---|---|
| MODEL | Inner Height (mm) | Inner Width (mm) | Outer Height (mm) | Outer Width (mm) | Weight Kg/Mt |
| CK40 A 080 R | 40 | 80 | 62 | 108 | 2,85 |
| CK40 A 100 R | 100 | 128 | 2,99 | ||
| CK40 A 120 R | 120 | 148 | 3,11 | ||
| CK40 A 140 R | 140 | 168 | 3,24 | ||
| CK40 A 160 R | 160 | 188 | 3,37 | ||
| CK40 A 180 R | 180 | 208 | 3,50 | ||
| CK40 A 200 R | 200 | 228 | 3,63 |
Order

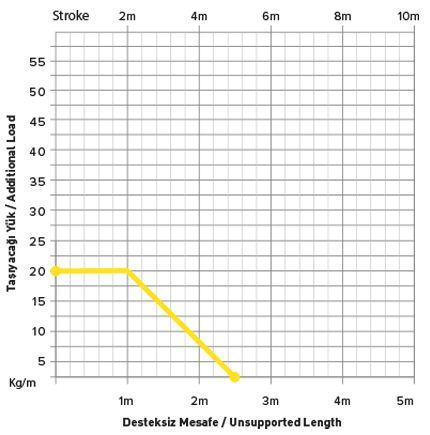

Load Diagram
Chain Cross Section
Driver Connections
Plastic End Brackets Connection
Steel End Brackets Inside Connection
Steel End Brackets Outside Connection
| KOD | T | T1 | T2 | T3 | D | D1 | D2 | D3 | D4 |
|---|---|---|---|---|---|---|---|---|---|
| CK40 P 080 | 94 | 65 | 125 | 140 | 108 | 104 | 94 | 150 | 165 |
| CK40 P 100 | 114 | 85 | 145 | 160 | 128 | 124 | 114 | 170 | 185 |
| CK40 P 120 | 134 | 105 | 165 | 180 | 148 | 144 | 134 | 190 | 205 |
| CK40 P 140 | 154 | 125 | 185 | 200 | 168 | 164 | 154 | 210 | 225 |
| CK40 P 160 | 174 | 145 | 205 | 220 | 188 | 184 | 174 | 230 | 245 |
| CK40 P 180 | 194 | 165 | 225 | 240 | 208 | 204 | 194 | 250 | 265 |
| CK40 P 200 | 214 | 185 | 245 | 230 | 228 | 224 | 214 | 270 | 285 |
Seperator
| T TYPE | LENGHT |
| CK YSP 060 | 60 mm |
| CK YSP 080 | 80 mm |
| CK YSP 100 | 100 mm |
Use the Divider
Use the Divider You can separate the cable and hose from each other by using vertical and horizontal divider.
Assembly
