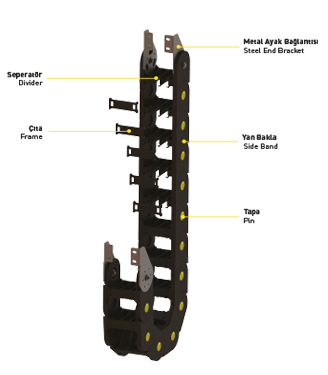

Plastic Heavy Series CK80 AC?K
Material Properties
PA6 with %30 fiber glass
Application Areas
Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Wood work machine, Fabric machine
Speed
6 m/sec
Operating Temperature
-30 °C -+ 130°C
| L | Calculation of the chain length |
|---|---|
| HM | Movement Distance |
| Y | Radius Distance |
| X | Mounting Height |
| H | Pitch |
| A | B | C | D | W | |
|---|---|---|---|---|---|
| MODEL | Inner Height (mm) |
Inner Width (mm) |
Outer Height (mm) |
Outer Width (mm) |
Weight Kg/Mt |
| CK80 A 080 R | 80 | 80 | 102 | 112 | 3,10 |
| CK80 A 100 R | 100 | 132 | 3,23 | ||
| CK80 A 120 R | 120 | 152 | 3,36 | ||
| CK80 A 140 R | 140 | 172 | 3,49 | ||
| CK80 A 160 R | 160 | 192 | 3,62 | ||
| CK80 A 180 R | 180 | 212 | 3,75 | ||
| CK80 A 200 R | 200 | 232 | 3,88 |
| R Bending Radius | 150 | 200 | 250 | 300 |
|---|---|---|---|---|
| H (mm) | 110 | 110 | 110 | 110 |
| X (mm) | 402 | 502 | 602 | 702 |
| Y (mm) | 471 | 628 | 785 | 942 |
Order

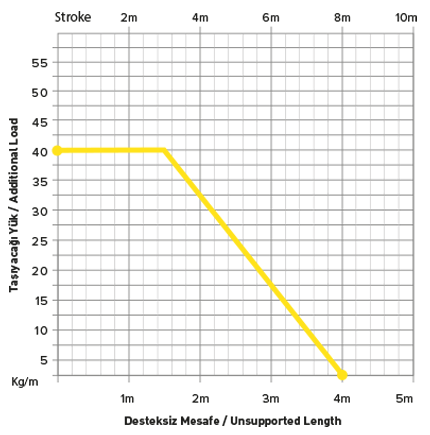

Load Diagram
Chain Cross Section
Driver Connections
Steel End Brackets Inside Connection
Steel End Brackets Outside Connection
| CODE | T1 | T2 | T3 | D1 | D2 | D3 | D4 |
|---|---|---|---|---|---|---|---|
| CK80 P 080 | 60 | 140 | 163 | 108 | 98 | 166 | 188 |
| CK80 P 100 | 80 | 160 | 183 | 128 | 118 | 186 | 208 |
| CK80 P 120 | 100 | 180 | 203 | 148 | 138 | 206 | 228 |
| CK80 P 140 | 120 | 200 | 223 | 168 | 158 | 226 | 248 |
| CK80 P 160 | 140 | 220 | 243 | 188 | 178 | 246 | 268 |
| CK80 P 180 | 160 | 240 | 263 | 208 | 198 | 266 | 288 |
| CK80 P 200 | 180 | 260 | 283 | 228 | 218 | 286 | 308 |
Seperator
| T TYPE | LENGHT |
|---|---|
| CK YSP 060 | 60 mm |
| CK YSP 080 | 80 mm |
| CK YSP 100 | 100 mm |
Use the Divider
Use the Divider You can separate the cable and hose from each other by using vertical and horizontal divider.
Assembly
