Plastic Medium Series CK30 AC?K CK30 AC?K
Material Properties
PA6 with %30 fiber glass
Application Areas
Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Wood work machine, Fabric machine
Speed
9 m/sec
Operating Temperature
-30 °C -+ 130°C
L | Calculation of the chain length |
---|---|
HM | Movement Distance |
Y | Radius Distance |
X | Mounting Height |
H | Pitch |
A | B | C | D | W | |
---|---|---|---|---|---|
MODEL | Inner Height (mm) | Inner Width (mm) | Outer Height (mm) | Outer Width (mm) | Weight Kg/Mt |
CK30 Y 040 R | 30 | 40 | 47 | 61 | 1,38 |
CK30 Y 060 R | 60 | 81 | 1,58 | ||
CK30 Y 080 R | 80 | 101 | 1,76 |
R Bending Radius | 75 | 100 | 150 |
---|---|---|---|
H (mm) | 52 | 52 | 52 |
X (mm) | 197 | 247 | 347 |
Y (mm) | 236 | 314 | 471 |
Order

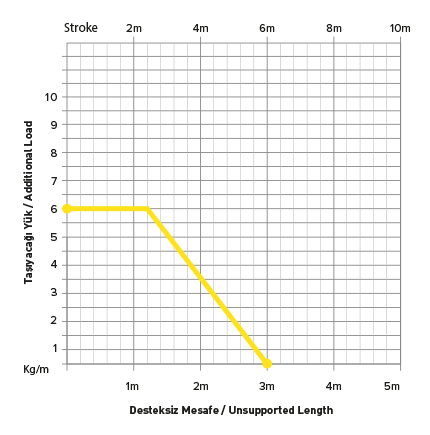

Load Diagram
Chain Cross Section
Driver Connections
Plastic End Brackets Connection
Steel End Brackets Inside Connection
Steel End Brackets Outside Connection
CODE | T | T1 | T2 | D | D1 | D2 | D3 | D4 |
---|---|---|---|---|---|---|---|---|
CK35 P 040 | 32 | 63 | 75 | 60 | 50 | 56 | 80 | 89 |
CK35 P 060 | 52 | 83 | 95 | 80 | 70 | 76 | 100 | 109 |
CK35 P 080 | 72 | 103 | 115 | 100 | 90 | 96 | 120 | 129 |
CK35 P 100 | 92 | 123 | 135 | 120 | 110 | 116 | 140 | 149 |
CK35 P 125 | 117 | 148 | 160 | 145 | 135 | 141 | 165 | 174 |
Seperator
T TYPE | LENGHT |
---|---|
CK YSP 060 | 60 mm |
CK YSP 080 | 80 mm |
CK YSP 100 | 100 mm |
Use the Divider
Use the Divider You can separate the cable and hose from each other by using vertical and horizontal divider.
