Flexible Conduits & Accessories
Flexible conduit is commonly used for the protection and containment of vulnerable electrical cables, wiring and fibre optics. It is an extremely effective form of cable management, available in a variety of systems, which can cope with a diverse range of environmental factors and operating conditions. With a comprehensive stock holding we strive to deliver service excellence to meet our customer demands faster, ensuring you can count on us.
Flexible Conduits are categorized as:
![](images/cks-cable/products/metal-conduit-1.png)
Metal conduit
- Galvanised & tin plate steel options
- Resistance against compression
- Long lasting corrosion
- Permanent operational temp. up to 220 °C
![](images/cks-cable/products/metal-conduit-2.png)
PVC coated metal conduit
- Galvanised & tin plate steel options
- PVC coated
- Gray/Black color options
- Resistance against compression
- Long lasting corrosion
- Operational temp. -20 °C + 80 °C
![](images/cks-cable/products/metal-conduit-3.png)
Heavyweight metal conduit
- Galvanised & tin plate steel options
- PVC coated (hardness level is high)
- Resistance against compression
- Long lasting corrosion
- Operational temp. -25 °C + 80 °C
![](images/cks-cable/products/metal-conduit-4.png)

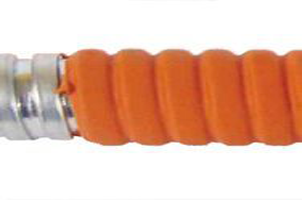

TPV coated metal conduit
- Galvanised & tin plate steel options
- Thermoplastic vulcanizate coated
- Orange color
- Resistance against compression
- Has grades with very low conductivity
- Availability of flame retardant grades
- Resistant to most acids and bases
- Halogen free
- Operational temp. -25 °C + 80 °C
![](images/cks-cable/products/metal-conduit-5.png)

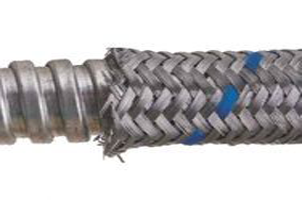

Steel wire over braiding conduit
- Galvanised steel
- Braiding over with stainless steel
- Resistance against compression
- Operational temp. up to +220 °C
![](images/cks-cable/products/metal-conduit-6.png)

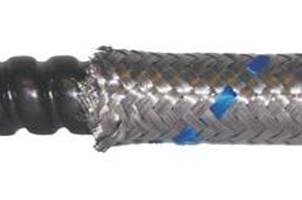

Steel wire over braiding & PVC coated conduit
- Galvanised main raw material
- Covered with 2 layers of raw materials
- 1st layer is PVC
- 2nd layer is stainless steel
- Resistance against compression
- Operational temp. -25 °C + 80 °C
![](images/cks-cable/products/metal-conduit-7.png)

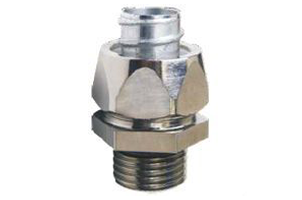

Liquid tight fixed body conduit glands
- Brass, nickel plated
- Liquid tight
- Fixed body & swivel body options
- Inserted to directly TACFLEX metal spiral conduit groups
- Connection thread norms (EN 60423 / DIN 40430)
- IP67 protection class
- Nitrile butaidene rubber (NBR O-ring)
![](images/cks-cable/products/metal-conduit-8.png)

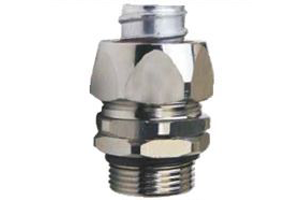

Liquid tight swivel body conduit glands
- Brass, nickel plated
- Liquid tight
- Fixed body & swivel body options
- Inserted to directly TACFLEX metal spiral conduit groups
- Connection thread norms (EN 60423 / DIN 40430)
- IP67 protection class
- Nitrile butaidene rubber (NBR O-ring)
![](images/cks-cable/products/metal-conduit-9.png)

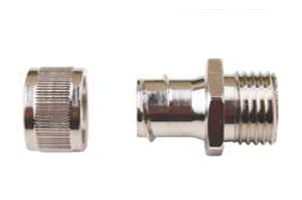

Fixed body conduit glands
- Brass, nickel plated
- Liquid tight
- Fixed body & swivel body options
- Inserted to directly TACFLEX metal spiral conduit groups
- Connection thread norms (EN 60423 / DIN 40430)
- IP54 protection class
- Nitrile butaidene rubber (NBR O-ring)
![](images/cks-cable/products/metal-conduit-10.png)

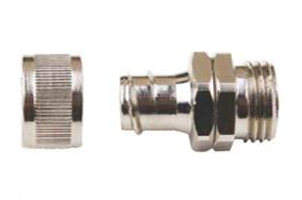

Swivel bodyconduit glands
- Brass, nickel plated
- Swivel Body
- Inserted to directly TACFLEX metal spiral conduit groups
- Connection thread norms (DIN 40430 / EN 60423)
- IP54 protection class
- Nitrile butaidene rubber (NBR 0-ring)
