Flexible Conduits & Accessories
Flexible conduit is commonly used for the protection and containment of vulnerable electrical cables, wiring and fibre optics. It is an extremely effective form of cable management, available in a variety of systems, which can cope with a diverse range of environmental factors and operating conditions. With a comprehensive stock holding we strive to deliver service excellence to meet our customer demands faster, ensuring you can count on us us.
Flexible Conduits are categorized as:
![](images/cks-cable/products/non-metal-conduit-1.png)

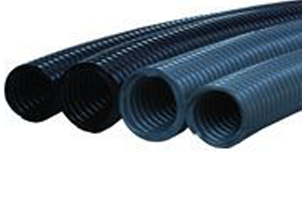

Polyamide spiral conduit
- A new brand by ORTAC
- Polyamide raw material
- High flexibility and high fatique life
- High impact strength 350 N
- Resistance to solvents and oils, low acids
- Gray (RAL 7031) & Black (RAL 9005) color options
- Ultraviolet resistance (black)
- Temperature range -40 °C+ 120 °C
- Abrasion resistant
- Mechanic equipment and machine production, aviation and aerospace industries, general industrial areas, malls, lightning and electrical installation panel, automotive sector
![](images/cks-cable/products/non-metal-conduit-2.png)

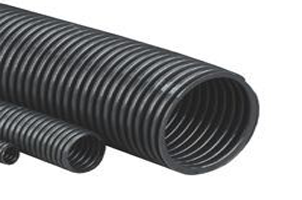

Polypropylene spiral conduit
- Polyamide raw material
- High flexibility and high fatigue life
- Resistance to solvents and oils, low acids
- Gray (RAL 7031) and Siyah (RAL 9005) color options
- Ultraviolet resistance (black)
- Temperature range -20 °C + 90 °C
- Abrasion resistant
- Mechanic equipment and machine production, aviation and aerospace industries, general industrial areas, malls, lighting and electrical installation panel, automotive sector
![](images/cks-cable/products/non-metal-conduit-3.png)

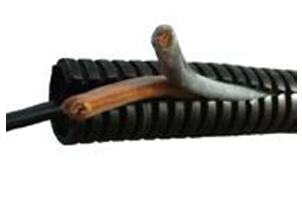

Polyamide spiral conduit - split type
- Polyamide raw material
- High flexibility and high fatique life
- High impact strength 350 N
- Resistance to solvents and oils, low acids
- Gray (RAL 7031) & Black (RAL 9005) color options
- Ultraviolet resistance (black)
- Temperature range -40 °C + 120 °C
- Abrasion resistant
- Mechanic equipment and machine production, aviation and aerospace industries, general industrial areas, malls, lightning and electrical installation panel, automotive sector
![](images/cks-cable/products/non-metal-conduit-4.png)

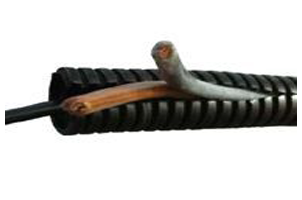

Polypropylene spiral conduit - split type
- Polypropylene raw material
- High flexibility and high fatigue life
- Resistance to solvents and oils, low acids
- Gray (RAL 7031) and Siyah (RAL 9005) color options
- Ultraviolet resistance (black)
- Temperature range -20 °C + 90 °C
- Abrasion resistant
- Mechanic equipment and machine production, aviation and aerospace industries, general industrial areas, malls, lighting and electrical installation panel, automotive sector
![](images/cks-cable/products/non-metal-conduit-5.png)
Polyamide conduit V0
- Polyamide raw material
- Fire protection class V0 according to UL 94
- Non-flammable
- High flexibility and high fatique life
- High impact strength 350 N
- Resistance to solvents and oils, low acids
- Gray (RAL 7031) & Black (RAL 9005) color options
- Ultraviolet resistance
- High temperature resistant
- Abrasion resistant
- Temperature range -40 °C + 120 °C
- Sum of the afterburning times for 10 ignition procedures max. 50 s.
- Mechanic equipment and machine production, aviation and aerospace industries, general industrial areas, malls, lightning and electrical installation panel, automotive sector
![](images/cks-cable/products/non-metal-conduit-6.png)

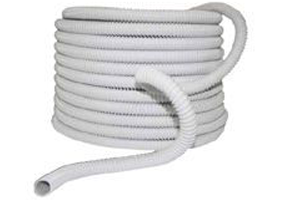

PVC conduit
Spiral cable conduit for protecting electrical or telecommunications conductors propagation.
- Polyvinylchloride
- Declared non propagating (CEI EN 50086-1)
- 500 N lengthening by approx. 30% of initial length
- Gray (RAL 7035)
- >100 MΩ
- Temperature range -10 °C + 65 °C
- A - 5°C (0,25 - 1 kg): no breakage
- Check min. thickness: 2000 V at 50 Hz, for 15 (Dielectric rigidity)
![](images/cks-cable/products/non-metal-conduit-7.png)

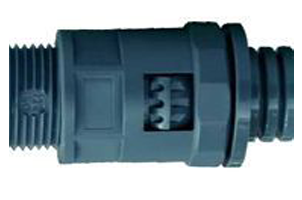

PA & PP conduits fittings
Tacflex connectors are easily assembled and ensures strong mechanical resistance, maximum tensile strength, slippery surface for easy cable access of tube, halogen free, different color options.
- Polyamide raw material
- Inserted directly to pa6/pp spiral conduits
- Ensure safety usage
- Resistance to Ultraviolet rays
- Resistance to solvents and oils, low acids
- Connection thread norm (EN 60423)
- Gray (RAL 7031) & Black (RAL 9005) color options
- Ultraviolet resistance (black)
- Permanent heat resistant -30 °C + 80 °C
![](images/cks-cable/products/non-metal-conduit-8.png)

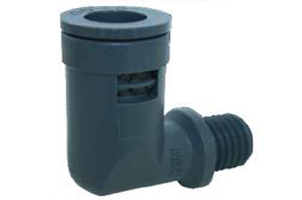

90° elbow fitting Tacflex 90° elbow fittings
- Polyamide raw material
- Inserted directly to pa6/pp spiral conduits
- Ensure safety usage
- Resistance to Ultraviolet rays
- Resistance to solvents and oils, low acids
- Connection thread norms (EN 60423 / DIN 40430)
- Gray (RAL 7031) & Black (RAL 9005) color options
- Ultraviolet resistance (black)
- Permanent heat resistant -30 °C + 80 °C
- 90° Design to protect cable from breaking
![](images/cks-cable/products/non-metal-conduit-9.png)

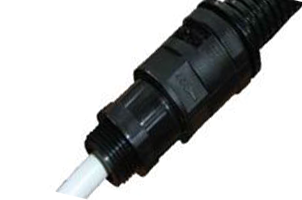

PA & PP conduits spiral fitting with cable holder
- Polyamide raw material
- Inserted directly to pa6/pp spiral conduits
- Ensure safety usage
- Resistance to Ultraviolet rays
- Resistance to solvents and oils, low acids
- Connection thread norms (DIN 40430 / EN 60423)
- Gray (RAL 7031) & Black (RAL 9005) color options
- Ultraviolet resistance (black)
- Permanent heat resistant -30 °C + 80 °C
- Extra cable holder part squeeze cable tightly
![](images/cks-cable/products/non-metal-conduit-10.png)

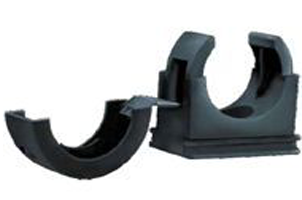

Polyamide clip
- Polyamide raw material
- Inserted directly to pa6/pp spiral conduits
- Ensure safety usage
- Resistance to Ultraviolet rays
- Resistance to solvents and oils, low acids
- Gray (RAL 7031) & Black (RAL 9005) color options
- Ultraviolet resistance (black)
- Permanent heat resistant -30 °C + 80 °C
![](images/cks-cable/products/non-metal-conduit-11.png)

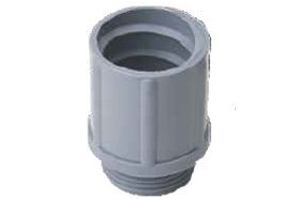

PVC conduits fittings
- Polyamide raw material
- Inserted directly to pvc spiral conduits
- Ensure safety usage
- Resistance to Ultraviolet rays
- Resistance to solvents and oils, low acids
- Connection thread norms (EN 60423 / DIN 40430)
- Gray (RAL 7001), L. Gray (RAL 7035) & Black (RAL 9005) color
- Ultraviolet resistance (black)
- Permanent heat resistant -30 °C + 80 °C
