![](images/cks-cable/products/metalic-cable-gland-1.png)

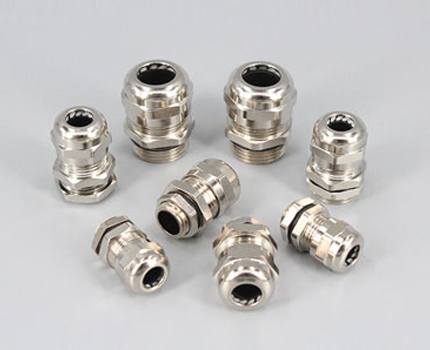

Standard type
Plastic series are separeted from other cable glands due to the following characteristics:-
- Brass, nickel plated
- High heat and impact resistance
- TPV rubber seal
- Ensures a firm grip on the cable that each point equal to 360°
- Connection thread norm (EN 60423 / DIN 40430)
- IP68 protection class
- Permanent heat resistance -40 °C +100 °C
- Halogen free (not contain poisonous gas)
- Nitrile butaidene rubber (NBR O-ring)
![](images/cks-cable/products/metalic-cable-gland-2.png)

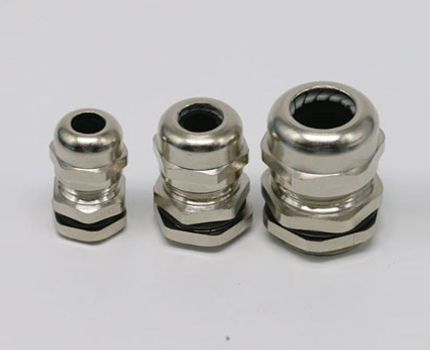

Stainless Steel
Stainless steel cable glands have following features:-
- Stainless steel
- High heat and impact resistance
- TPV rubber seal
- Stainless steel raw material (1.4305/AISI 303) (1.4404/AISI316L)
- Ensures a firm grip on the cable that each point equal to 360°
- Connection thread norm (EN 60423 / DIN 40430)
- IP68 protection class
- Permanent heat resistance -40 °C +100 °C
- Halogen free (not contain poisonous gas)
- Nitrile butaidene rubber (NBR O-ring)
![](images/cks-cable/products/metalic-cable-gland-3.png)
EMC type
EMC types are separeted from other cable glands due to the following characteristics:-
- Brass, nickel plated
- High heat and impact resistance
- TPV rubber seal
- Ensures a firm grip on the cable that each point equal to 360°
- Connection thread norms (EN 60423 / DIN 40430)
- IP68 protection class
- Permanent heat resistance -40 °C +100 °C
- Halogen free (not contain poisonous gas)
- Nitrile butaidene rubber (NBR 0-ring) For a quick installation of partially dismantled cables as well as thoroughly shielded cables
- EMC stands for Electromagnetic compatibility- thus the degree of the influence of feathers or radiations designated who of an installation, equipment or an other electrical or electronic plant goes out.
![](images/cks-cable/products/metalic-cable-gland-4.png)

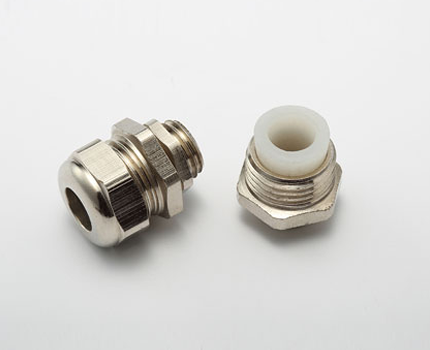

Silicone Seal
Metal series are separeted from other cable glands due to the following characteristics:-
- Brass, nickel plated
- High heat and impact resistance
- Silicone seal
- Ensures a firm grip on the cable that each point equal to 360°
- Connection thread norms (EN 60423 / DIN 40430)
- IP68 protection class
- Permanent heat resistance -40 °C +200 °C
- Halogen free (not contain poisonous gas)
- Silicone 0-ring
![](images/cks-cable/products/metalic-cable-gland-5.png)

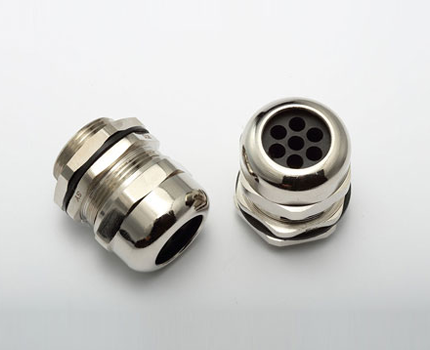

Multihole - Flathole
Multihole - flathole types are separeted from other cable glands due to the following characteristics:-
- Brass, nickel plated
- High heat and impact resistance
- TPV rubber seal
- Ensures a firm grip on the cable that each point equal to 360°
- Connection thread norm (EN 60423 / DIN 40430)
- IP65 protection class
- Permanent heat resistance -40 °C +100 °C
- Halogen free (not contain poisonous gas)
- Nitrile butaidene rubber (NBR O-ring)
- Multiple hole options
![](images/cks-cable/products/metalic-cable-gland-6.png)

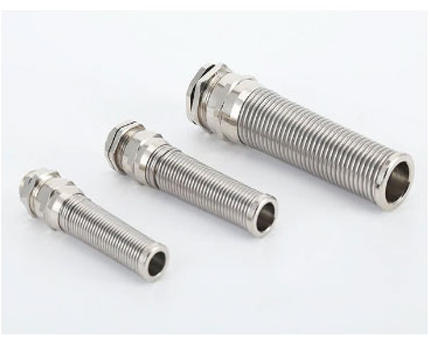

Spiral type
Spiral type of metal cable glands are separeted from other cable glands due to the following characteristics:-
- Brass, nickel plated
- Spiral spring part made of stainless steel (1.4310/AISI302)
- High heat and impact resistance
- TPV rubber seal
- Ensures a firm grip on the cable that each point equal to 360 °
- Connection thread norms (EN 60423 / DIN 40430)
- IP68 protection class
- Permanent heat resistance -40 °C +100 °C
- Halogen free (not contain poisonous gas)
- Nitrile butaidene rubber (NBR O-ring)
- Bending of cable action that provides freedom of movement
![](images/cks-cable/products/metalic-cable-gland-7.png)

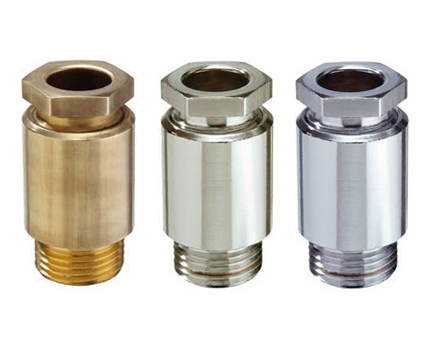

Flat type
Flat type of metal series are separeted from other cable glands due to the following characteristics:-
- Brass, nickel plated
- High heat and impact resistance
- TPV rubber seal
- Ensures a firm grip on the cable that each point equal to 360°
- Connection thread norms (EN 60423 / DIN 40430)
- IP54 protection class
- Permanent heat resistance -40 °C +100 °C
- Halogen free (not contain poisonous gas)
- Nitrile butaidene rubber (NBR O-ring)
![](images/cks-cable/products/metalic-cable-gland-8.png)

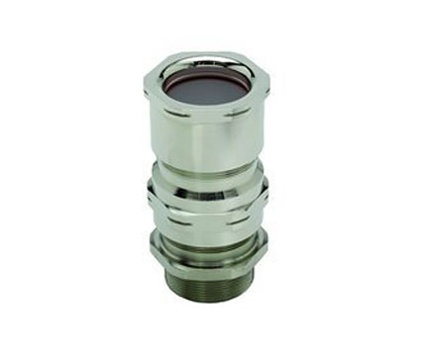

Flat type with traction relief
Flat type with traction relief series are separeted from other cable glands due to the following characteristics:-
- Brass, nickel plated
- High heat and impact resistance
- TPV rubber seal
- Ensures a firm grip on the cable that each point equal to 360°
- Connection thread norms (EN 60423 / DIN 40430)
- IP54 protection class
- Permanent heat resistance -40 C° +100 °C
- Halogen free (not contain poisonous gas)
- Nitrile butaidene rubber (NBR O-ring)
- Squezze the cable strongly
![](images/cks-cable/products/metalic-cable-gland-9.png)

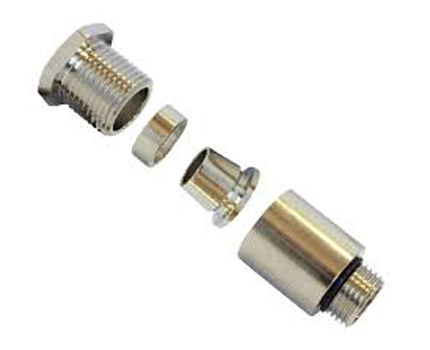

Nozzle A2(for armoured cable)
Nozzle A2(for armoured cable) has following characteristics:-
- Brass, nickel plated (optional)
- High heat and impact resistance
- TPV rubber seal
- Ensures a firm grip on the cable that each point equal to 360
- IP54 protection class
- Permanent heat resistance -40 C +100 C
- Halogen free (not contain poisonous gas)
- Nitrile butaidene rubber (NBR O-ring)
- Mostly used in armoured cable assembling
![](images/cks-cable/products/metalic-cable-gland-10.png)

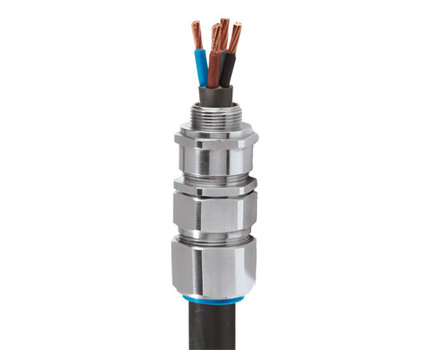

E1W type)
following characteristics:-
- Brass, nickel plated (optional)
- Single wire armour (SWA)
- TPV rubber seal
- Connection thread norm (EN 60423)
- IP66 (IP67 - IP68) protection class
- Permanent heat resistance -40 °C +100 °C
- Halogen free (not contain poisonous gas)
- Nitrile butaidene rubber (NBR O-ring)
- Mostly used in armoured cable assembling
- Squezze the cable in a powerful way
- Avaliable in three variations such as aluminum, brass (with or without nickel plated), stainless steel.
![](images/cks-cable/products/metalic-cable-gland-11.png)

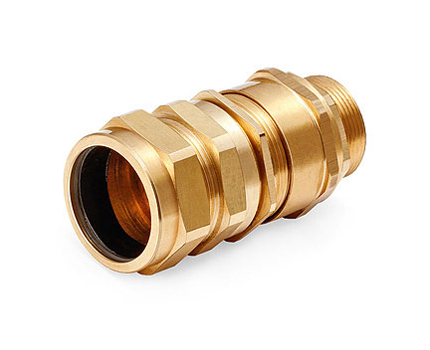

CW type
following characteristics:-
- Brass, nickel plated (optional)
- Single wire armour (SWA)
- TPV rubber seal
- Connection thread norm (EN 60423)
- IP66 protection class
- Permanent heat resistance -40 °C +100 °C
- Halogen free (not contain poisonous gas)
- Nitrile butaidene rubber (NBR O-ring)
- Mostly used in armoured cable assembling
- Squezze the cable in a powerful way
- Avaliable in three variations such as aluminum, brass (with or without nickel plated), stainless steel.
![](images/cks-cable/products/metalic-cable-gland-12.png)

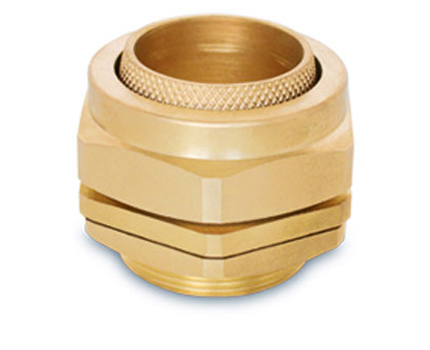

BW type
following characteristics:-
- Brass, nickel plated (optional)
- Single wire armour (SWA)
- Connection thread norm (EN 60423)
- Continuous heat resistance -80 °C +300 °C
- Nitrile butaidene rubber (NBR O-ring)
- Mostly used in armoured cable assembling
- Avaliable in three variations such as aluminum, brass (with or without nickel plated), stainless steel.
![](images/cks-cable/products/metalic-cable-gland-13.png)

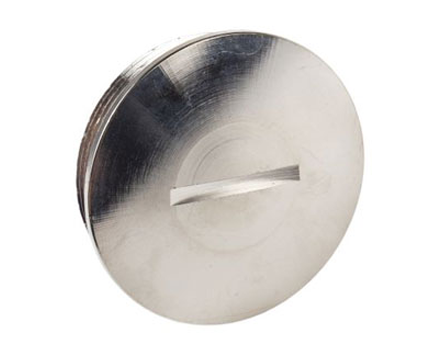

Blind Stops
Brass, nickel plated blind stops are separeted from other cable glands due to the following characteristics:-
- Brass, nickel plated
- Connection thread norms (DIN 40430 / EN 60423)
- IP68 protection class
- Nitrile butaidene rubber (NBR O-ring)
![](images/cks-cable/products/metalic-cable-gland-15.png)

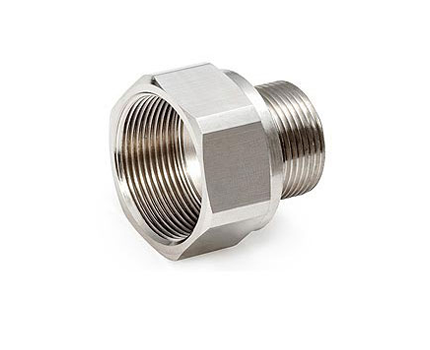

Reducers
Following characteristics:-
- Brass, nickel plated
- High heat and impact resistance
- Connection thread norms (EN 60423 / DIN 40430)
- IP68 protection class
- Nitrile butaidene rubber (NBR O-ring)
![](images/cks-cable/products/metalic-cable-gland-17.png)

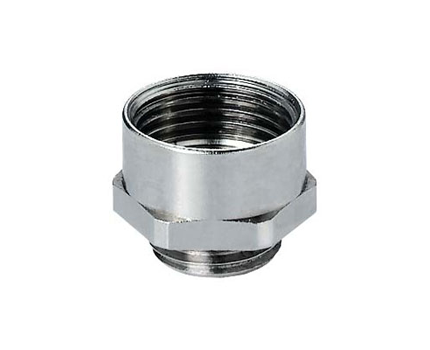

Enlargers
Following characteristics:-
- Brass, nickel plated
- High heat and impact resistance
- Connection thread norms (EN 60423 / DIN 40430)
- Both PG and Metric threads are able to enlargement
- Nitrile butaidene rubber (NBR O-ring)
![](images/cks-cable/products/metalic-cable-gland-16.png)

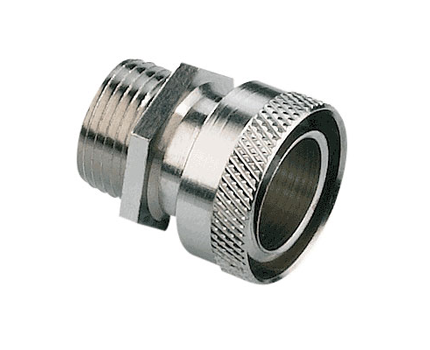

Adapters
Following characteristics:-
- Brass, nickel plated
- High heat and impact resistance
- Connection thread norms (EN 60423 / DIN 40430)
- Threaded adapters easily convert or mate PG or Metric threads to each other.
- Nitrile butaidene rubber (NBR O-ring)
