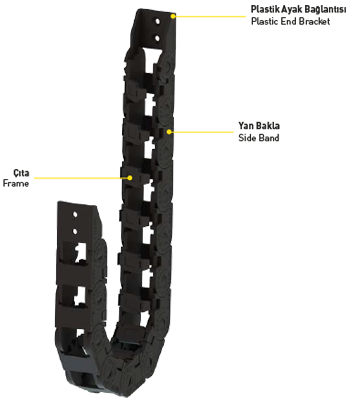

Plastic Light Series CK15 AC?K
Material Properties
PA6 with %30 fiber glass
Application Areas
Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Wood work machine, Fabric machine
Speed
8 m/sec
Operating Temperature
-30 °C -+ 130°C
| L | Calculation of the chain length |
|---|---|
| HM | Movement Distance |
| Y | Radius Distance |
| X | Mounting Height |
| H | Pitch |
| Openable From Inner | A | B | C | D | W |
|---|---|---|---|---|---|
| MODEL | Inner Height (mm) | Inner Width (mm) | Outer Height (mm) | Outer Width (mm) | Weight Kg/Mt |
| CK15 A 015 R25 | 15 | 15 | 20 | 25 | 0,23 |
| Openable From Outer | A | B | C | D | W |
|---|---|---|---|---|---|
| MODEL | Inner Height (mm) | Inner Width (mm) | Outer Height (mm) | Outer Width (mm) | Weight Kg/Mt |
| CK15 B 015 R... | 15 | 15 | 20 | 25 | 0,27 |
| CK15 B 020 R... | 20 | 28 | 0,29 | ||
| CK15 B 030 R... | 30 | 38 | 0,32 | ||
| CK15 B 040 R... | 40 | 48 | 0,35 |
| Fixed Frame | A | B | C | D | W |
|---|---|---|---|---|---|
| MODEL | Inner Height (mm) | Inner Width (mm) | Outer Height (mm) | Outer Width (mm) | Weight Kg/Mt |
| CK15 F 015 R... | 15 | 15 | 20 | 25 | 0,27 |
| CK15 F 020 R... | 20 | 28 | 0,29 | ||
| CK15 F 030 R... | 30 | 38 | 0,32 | ||
| CK15 F 040 R... | 40 | 48 | 0,35 |
| RBending Radius | 25 |
|---|---|
| H (mm) | 25 |
| X (mm) | 70 |
| Y (mm) | 79 |
| R Bending Radius | 35 |
|---|---|
| H (mm) | 25 |
| X (mm) | 89 |
| Y (mm) | 110 |

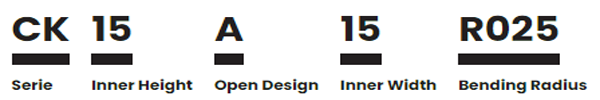

Order

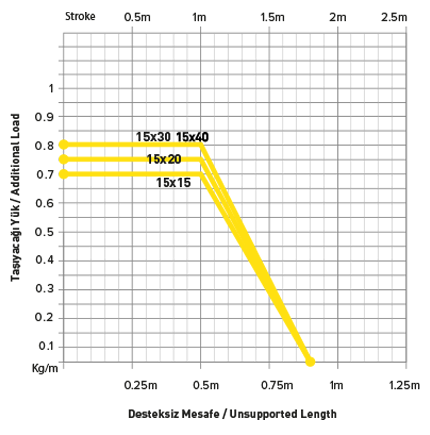

Load Diagram

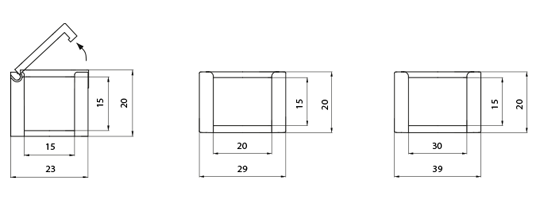

Chain Cross Section

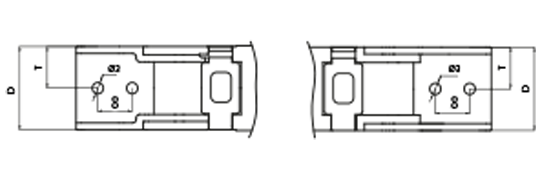

Driver Connections
CK15 P 015 - CK15 P 020
CK15 P 030
| CODE | T | D | L |
|---|---|---|---|
| CK15 P 015 | 12 | 24 | |
| CK15 P 020 | 14,5 | 29 | |
| CK15 P 030 | 19,5 | 39 | 22 |
| CK15 P 040 | 24,5 | 49 | 32 |
Assembly
