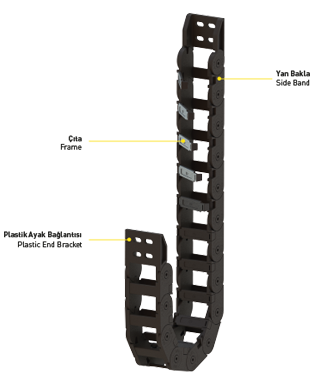

Plastic Light Series CK24 AC?K
Material Properties
PA6 with %30 fiber glass
Application Areas
Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Wood work machine, Fabric machine
Speed
8 m/sec
Operating Temperature
-30 °C -+ 130°C
| L | Calculation of the chain length |
|---|---|
| HM | Movement Distance |
| Y | Radius Distance |
| X | Mounting Height |
| H | Pitch |
| A | B | C | D | W | |
|---|---|---|---|---|---|
| MODEL | Inner Height (mm) |
Inner Width (mm) |
Outer Height (mm) |
Outer Width (mm) |
Weight Kg/Mt |
| CK24 A 025 R | 24 | 25 | 32 | 39 | 0,45 |
| CK24 A 040 R | 40 | 54 | 0,50 | ||
| CK24 A 050 R | 50 | 64 | 0,55 | ||
| CK24 A 060 R | 60 | 74 | 0,60 | ||
| CK24 B 060 R | 60 | 74 | 0,60 |
| R Bending Radius | 40 | 75 | 100 |
|---|---|---|---|
| H (mm) | 43,5 | 43,5 | 43,5 |
| X (mm) | 112 | 182 | 232 |
| Y (mm) | 126 | 236 | 314 |
Order

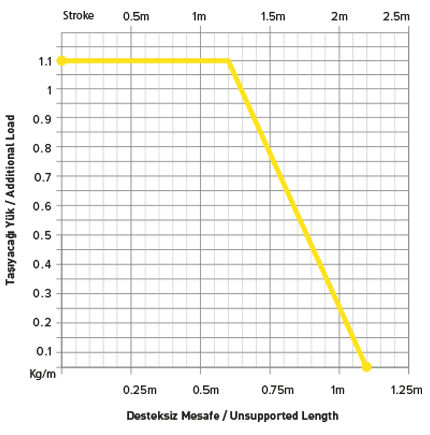

Load Diagram

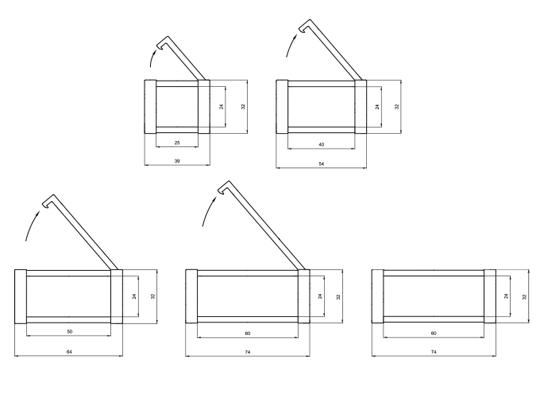

Chain Cross Section
Driver Connections
CK15 P 015 - CK15 P 020
| CODE | T | D |
|---|---|---|
| CK24 P 025 | 8 | 39 |
| CK24 P 040 | 18 | 54 |
| CK24 P 050 | 22 | 64 |
| CK24 P 060 | 32 | 74 |
Assembly
