CK 42 Y Plastic Cable Drag Chain
Material Properties
PA6 with %30 fiber glass
Application Areas
Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Wood work machine, Fabric machine
Speed
9 m/sec
Operating Temperature
-30 °C -+ 130°C
| L | Calculation of the chain length |
|---|---|
| HM | Movement Distance |
| Y | Radius Distance |
| X | Mounting Height |
| H | Pitch |
| A | B | C | D | W | |
|---|---|---|---|---|---|
| MODEL | Inner Height (mm) | Inner Width (mm) | Outer Height (mm) | Outer Width (mm) | Weight Kg/Mt |
| CK42 A 040 R | 42 | 40 | 58 | 67 | 1,67 |
| CK42 A 050 R | 50 | 77 | 1,74 | ||
| CK42 A 060 R | 60 | 87 | 1,80 | ||
| CK42 A 080 R | 80 | 107 | 1,93 | ||
| CK42 A 100 R | 100 | 127 | 2,06 | ||
| CK42 A 120 R | 120 | 147 | 2,19 | ||
| CK42 A 125 R | 125 | 152 | 2,32 |
| R Bending Radius | 75 | 100 | 150 | 200 |
|---|---|---|---|---|
| H (mm) | 62 | 62 | 62 | 62 |
| X (mm) | 208 | 258 | 358 | 458 |
| Y (mm) | 236 | 314 | 471 | 628 |
Order
Load Diagram
Chain Cross Section
Driver Connections

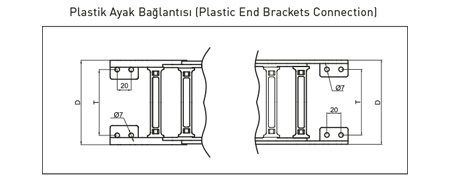

Plastic End Brackets Connection

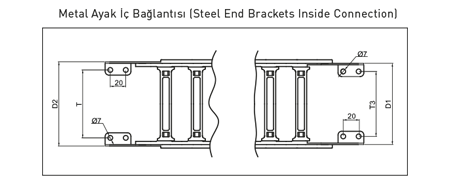

Steel End Brackets Inside Connection
Steel End Brackets Outside Connection
| KOD | T | T1 | T2 | D | D1 | D2 | D3 | D4 |
|---|---|---|---|---|---|---|---|---|
| CK42 P 040 | 30 | 53 | 67 | 65 | 51 | 59 | 81 | 92 |
| CK42 P 050 | 40 | 63 | 77 | 75 | 61 | 69 | 91 | 102 |
| CK42 P 060 | 50 | 73 | 87 | 85 | 71 | 79 | 101 | 112 |
| CK42 P 080 | 70 | 93 | 107 | 105 | 91 | 99 | 121 | 132 |
| CK42 P 100 | 90 | 113 | 127 | 125 | 111 | 119 | 141 | 152 |
| CK42 P 120 | 110 | 133 | 147 | 145 | 131 | 139 | 161 | 172 |
| CK42 P 125 | 115 | 138 | 152 | 150 | 136 | 144 | 166 | 177 |
Seperator
| T TYPE | LENGHT |
|---|---|
| CK YSP 060 | 60 mm |
| CK YSP 080 | 80 mm |
| CK YSP 100 | 100 mm |
Use the Divider
Use the Divider You can separate the cable and hose from each other by using vertical and horizontal divider.
Assembly
